3PH3600C Series Inverter

WS-3PH3600 series inverter is a three-phase inverter designed by W&H-GAMAY. for civil and industrial electronic equipment. It is a kind of conversion device that can convert the direct current 24VDC, 36V, 48VDC, 300V and 600V into 50Hz/60Hz/110V/190V or 50Hz/60Hz/220V/380V three-phase AC output.

Product introduction

Product Introduction
WS-3PH3600 series inverter is a three-phase inverter designed by W&H-GAMAY. for civil and industrial electronic equipment. It is a kind of conversion device that can convert the direct current 24VDC, 36V, 48VDC, 300V and 600V into 50Hz/60Hz/110V/190V or 50Hz/60Hz/220V/380V three-phase AC output. The output power is from 300KVA to 45kVA, which can be widely used in automobiles, ships, rail transit, digital products, home lighting, enterprise emergency power supply, and other places that the AC emergency power supply is required.

Main Features
    1. With a wide Input Voltage Range:24VDC-600VDC, and wide applicability.
    2. With a wide operating temperature range: -40~55℃;
    3. Full protection, with input over/under voltage protection;
    4. Output over/under voltage, over current, short circuit and over temperature protection;
    5. Strong overload capacity, it can adapt to all kinds of impact load starting requirements;
    6. 2500Vdc high isolation voltage, safe and reliable;
    7. The case is made of aluminum alloy, with good structural strength, light weight, high temperature resistance, impact resistance and more safety;
    8. 3 years Warranty, more reliable.

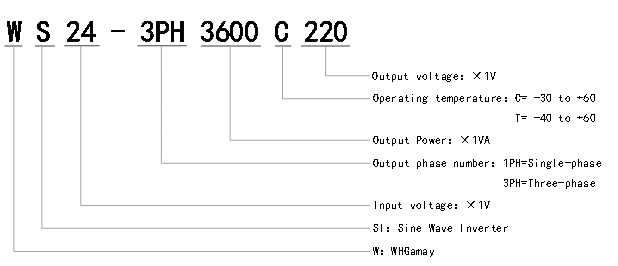

Model Designation


Product Parameter

 Model

              Items

WS12-3PH3600C220

WS24-3PH3600C220

WS48-3PH3600C220

WS300-3PH3600C220

WS600-3PH3600C220

Input

 Input voltage

12VDC

24VDC

48VDC

300VDC

600VDC

Voltage range

DC9-18V

DC18-36V

DC36-72V

DC200-400V

DC500-700V

Three-phase total current(ArmsTyp)

360

180

90

21

8

Output

Three-phase Total Power(VA)

3600

Phrase Voltage/Line Voltage(Vac)

110/190

220/380

110/190

220/380

110/190

220/380

110/190

220/380

110/190

220/380

 Frequency(Hz)

50/60

Phase Current (Arms)

11

5.5

11

5.5

11

5.5

11

5.5

11

5.5

Efficiency(Typ)

85%

85%

86%

88%

90%

 Voltage Accuracy

≤±2%



Three-phase Voltage Unbalance

2%



Output Waveform

pure sine wave



Output Phase Sequence

A-B-C positive phase sequence



Total Harmonic Distortion

3%



Load Regulation

5%



Load Adaptability

Unlimited, but it must be derated under inductive and capacitive loads.



Start-up time

1S



Protection

Over Load

Exceed 120% of rated power, delay 30S; 150% delay 10S, and 200% delay 1S.



Turn-off protection, restart after the load is normal.



Over Voltage

10%Turn-off output, restart to restore normal.



Over Heat

Turn-off output, after temperature recovery, restart to restore normal.



Working Environment

Working Temp.(℃)

-3060



Storage Temperature(℃)

-5585



Operating Humidity

1090%RH, No condensation



Others

Test Voltage

Input-output withstand 2KVAC, test time: 60s, Leakage current less than 5mA



Insulation Resistance





Overall Dimension(mm)

(L)330×(W)230×(H)130(single phase)  (electrical connector is not included.)



WeightKg

8.5(single phase), 25.5(Three-phase total weight) (Cable is not included.)





Cooling Mode

air cooling





Communication Mode

If the communication is required, please inform us before ordering.



Note:

1.  Harmonic measurement: Use the 0.1mm2 twisted pair wire, after two turns of winding on the Φ10 ferrite core in terminal and parallel connected with a 0.1uF capacitor, and measure under the condition of 20MHz oscilloscope bandwidth.

2. Voltage Accuracy: including setting error and load regulation;

3. The power level, output voltage and output frequency in the table are standards, it also can be customized if there's special requirements.

4. If a three-phase inverter mounting bracket is required, please inform us before ordering.




Structure & Size

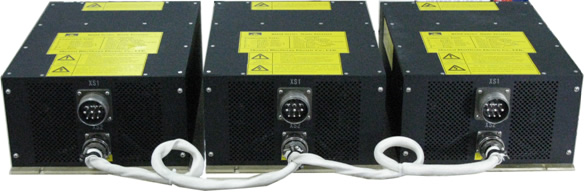

  1. Product Appearance

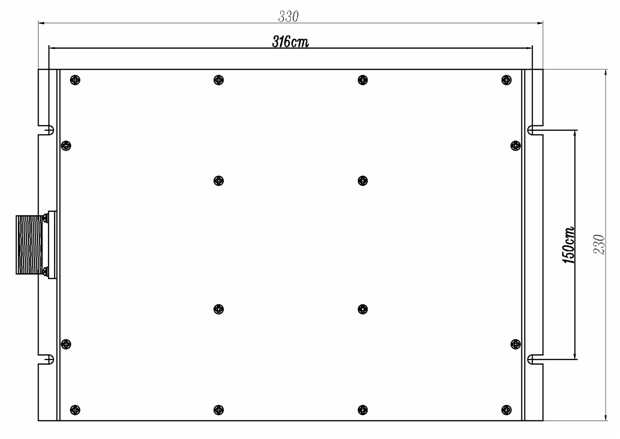

  2. Single phase overall dimensions and installation dimension
Product installation dimensions as following figure, use the phase lock cables, connect the three single-phase inverters together, combined to a 3-phase power supply for use.
Following figure is the single-phase inverter overall dimensions and installation dimension.


  3. Connection Definition
    1) Operating Panel Diagram




      2) Connection Definition



Input/Output Electric Connector

XS1(Plug Type: JY3102E24-11P)
