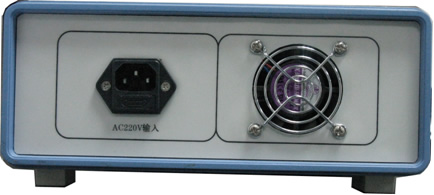

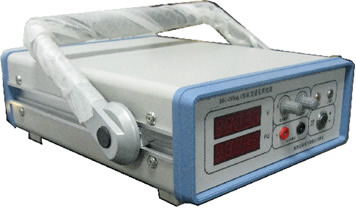

WPT200A series AC-DC chassis power supply is a high-power DC power supply developed by W&H-GAMAY. It has a wide range of input as 85-135Vac, 176-264Vac, 9-48Vdc, multi voltage output is optional.

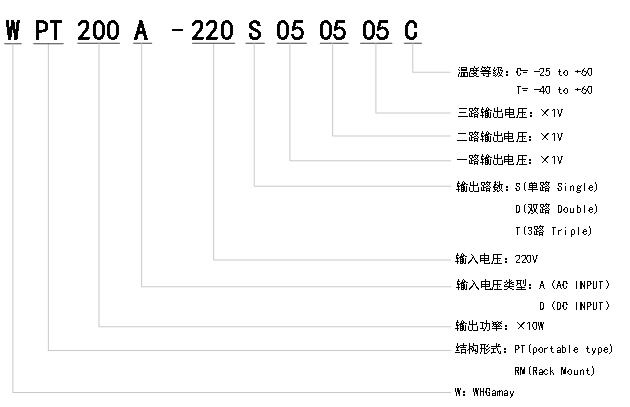

Product introduction
1. With a wide input voltage range: 85-135Vac/176-264Vac;
2. With a wide temperature range: -40 ~ 60℃;
3. High input power factor, reduce interference to the grid, energy saving and environmental protection;
4. Multi-output , wide application;
5. Full protection, with input over/under voltage protection;
6. Output over/under voltage, over current, short circuit and over temperature protection;
7. 2500Vdc high isolation voltage, safe and reliable;
8. Warranty: 3 years.
Product Parameter
|
Model Items |
WPT100P-220S12C |
WPT100P-220S15C |
WPT100P-220S18C |
WPT100P-220S24C |
WPT100P-220S36C |
WPT100P-220S48C |
|
|
Input |
Voltage Rang(VAC) |
85-135/176-264 |
|||||
|
Frequency(Hz) |
47～63 |
||||||
|
Current (Typ)(Arms） |
11/5.5 |
||||||
|
Power Factor（Typ） |
≥0.93 |
||||||
|
Output |
voltage（V） |
1000W |
|||||
|
Current （A） |
12 |
15 |
18 |
24 |
36 |
48 |
|
|
Efficiency（Typ） |
83.00 |
67.00 |
56.00 |
42.00 |
28.00 |
24.00 |
|
|
Voltage Tolerance |
88% |
88% |
89% |
89% |
90% |
90% |
|
|
voltage（V） |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
|
|
Voltage Ripple & noise（mVp-p） |
120 |
120 |
150 |
150 |
150 |
150 |
|
|
Load regulation |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
|
|
Start-up time （mS） |
≤1000 |
||||||
|
Protection |
Over Load |
Over rated power105-150% |
|||||
|
Switch off protection, restart after the load is normal. |
|||||||
|
Over Voltage |
12.6～13.8 |
15.7～20.3 |
18.9～24.3 |
25.2～32.4 |
37.8～48.6 |
50.4～64.8 |
|
|
Turn-off output, restart to restore normal. |
|||||||
|
Over Heat |
Turn-off output, after temperature recovery, restart to restore normal. |
||||||
|
Working Environment |
Working Temp.（℃） |
-20～85 |
|||||
|
Storage Temperature（℃） |
-40～85 |
||||||
|
Operating Humidity |
10～90%RH, No condensation |
||||||
|
Others |
Test Voltage |
Input-output withstand 3KVAC, test time: 60s, Leakage current less than 5mA |
|||||
|
Insulation Resistance |
Input-output, insulation voltage 500VDC, Insulation resistance 100MΩ（25℃、Relative Humidity 95%） |
||||||
|
Overall Dimension |
360x259x102mm |
||||||
|
Weight |
0.65Kg |
||||||
|
Remarks
|
1. Ripple and noise measurement: Use twisted pair wire, connect 0.1uF and 47uF capacitors at the terminal, and measure under the condition of 20MHz oscilloscope bandwidth; 2. Voltage Accuracy: including setting error and load regulation; 3. Standard configuration of structural size of plugs and wiring, it’s also can be customized. |
||||||
