WO series Power Supply is a small volume open frame switching power supply designed and produced by W&H-GAMAY. The power from 10W to 100W. It has the advantage of ultra-wide input voltage range, low power consumption, high efficiency, high reliability, high safety isolation, and excellent EMC performance.
Product introduction
Product Parameter
|

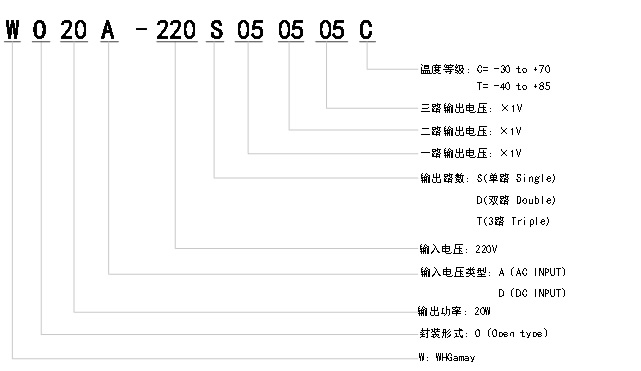

Model Item |
WO10A-220S03T |
WO10A-220S05T |
WO10A-220S09T |
WO10A-220S12T |
WO10A-220S15T |
WO10A-220S18T |
WO10A-220S24T |
WO10A-220S36T |
WO10A-220S48T |
|
|
Input |
Voltage Range（VAC） |
85-700 |
||||||||
|
Frequency（Hz） |
47～63 |
|||||||||
|
Current (MAX)（Arms） |
1.4 |
|||||||||
|
Inrush Current(MAX)（A） |
40 (under Cool Start) |
|||||||||
|
Power Factor（Typ） |
≥0.91 |
|||||||||
|
Output |
Power（W） |
3.3 |
5 |
9 |
12 |
15 |
18 |
24 |
36 |
48 |
|
voltage（V） |
3.00 |
2.00 |
1.10 |
0.83 |
0.67 |
0.56 |
0.42 |
0.27 |
0.21 |
|
|
Current （A） |
70% |
70% |
71% |
72% |
721% |
75% |
75% |
77% |
77% |
|
|
Efficiency（Typ） |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
|
|
Voltage Tolerance |
120 |
120 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
|
|
Voltage Ripple & noise（mVp-p） |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
|
|
Load regulation |
≤100 |
|||||||||
|
Protection |
over load |
Over rated power 105-150% |
||||||||
|
Hiccup mode protection, automatically resume work if overload comes to rated load. |
||||||||||
|
over/under voltage |
3.5～3.8 |
5.3～5.8 |
9.5～10.4 |
12.6～13.8 |
15.8～17.3 |
18.9～20.7 |
25.2～27.6 |
37.8～41.4 |
50.4～55.2 |
|
|
Turn-off output, restart to restore normal |
||||||||||
|
over heat |
Turn-off output, after temperature recovery, restart to restore normal |
|||||||||
|
Working Environment |
Working Temp.（℃） |
-20～85 |
||||||||
|
Storage Temperature（℃） |
-40～85 |
|||||||||
|
Operating Humidity |
10～90%RH, No condensation |
|||||||||
|
Altitude（m） |
≤3000 |
|||||||||
|
Others |
Test Voltage |
Input-output withstand 3KVAC, test time: 60s, Leakage current less than 5mA |
||||||||
|
Insulation Resistance |
Input-output, insulation voltage 500VDC, Insulation resistance 100MΩ（25℃、Relative Humidity 95%） |
|||||||||
|
Overall Dimension |
60x35x30mm |
|||||||||
|
Weight |
0.15Kg |
|||||||||
|
Remarks
|
1. Ripple and noise measurement: Use twisted pair wire, connect 0.1uF and 47uF capacitors at the terminal, and measure under the condition of 20MHz oscilloscope bandwidth; 2. Voltage Accuracy: including setting error and load regulation; 3. Standard configuration of structural size of plugs and wiring, it’s also can be customized. 4. Fuse: For safety reasons, the module input must be connected to the fuse. The recommended specification for WA5P is 1A/250V, WA10P-WA15P is 2A/250V, and WA20P-WA40P is 3.15A/250V. |
|||||||||
Overall Dimensions, PCB Mounting and Pin Definition
