1PH2000C Series Inverter

WS-1PH series inverter is a single-phase inverter designed by W&H-GAMAY. for civil and industrial electronic equipment. It is a kind of conversion device that can covert the direct current 12VDC, 24VDC, 48VDC into 60Hz/110V or 50Hz/60Hz/220V single-phase AC output.

Product introduction

Product Introduction
WS-1PH series inverter is a single-phase inverter designed by W&H-GAMAY. for civil and industrial electronic equipment. It is a kind of conversion device that can covert the direct current 12VDC, 24VDC, 48VDC into 60Hz/110V or 50Hz/60Hz/220V single-phase AC output. The output power is from single-phase 50KVA to 15kVA, which can be widely used in automobiles, ships, rail transit, digital products, home lighting, enterprise emergency power supply, and other places that the AC emergency power supply is required.

Working Principle Diagram


Product Parameter

 Model

                                     Items

WS24-1PH2000

WS48-1PH2000

WS300-1PH2000

WS600-1PH2000

Input

Input voltage

24VDC

48VDC

300VDC

600VDC

Voltage range

DC18-36V

DC36-72V

DC200-400V

DC500-700V

Current (Arms MAX)

280

136

25

10

Output

PowerVA

2000

VoltageVac

110

220

110

220

110

220

110

220

FrequencyHz

50/60

Current Arms

18.2

9.1

18.2

9.1

18.2

9.1

18.2

9.1

EfficiencyTyp

80%

82%

83%

85%

Voltage Accuracy

≤±2%

Total Harmonic Distortion

3%

Load Regulation

5%

Start-up time

1S

Protection

Over Load

Exceed 120% of rated power, delay 30S; 150% delay 10S, and 200% delay 1S.

Turn-off protection, restart after the load is normal.

Over Voltage

10%Turn-off output, restart to restore normal.

Over Heat

Turn-off output, after temperature recovery, restart to restore normal.

Working Environment

Working Temp.(℃)

-4050

Storage Temperature(℃)

-5585

Operating Humidity

1090%RH,No condensation

Others



Test Voltage









Insulation Resistance









Overall Dimension(mm)

(L)330×(W)270×(H)140()  (electrical connector is not included.)

WeightKg

15Kg

Note:

1.  Harmonic measurement: Use the 0.1mm2 twisted pair wire, after two turns of winding on the Φ10 ferrite core in terminal and parallel connected with a 0.1uF capacitor, and measure under the condition of 20MHz oscilloscope bandwidth.

2. Voltage Accuracy: including setting error and load regulation;

3. The power level, output voltage and output frequency in the table are standards, it also can be customized if there's special requirements.


Structure & Size

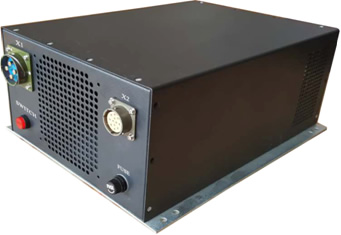

  1. Product Appearance

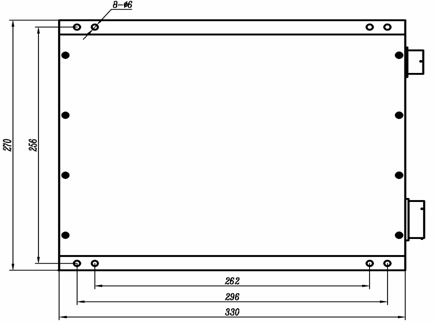

  2. Installation dimensions


 3. Connection Definition

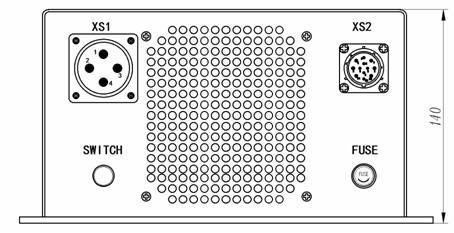

  1) Operating Panel Diagram




    2) Connection Definition

Input Electric Connector

XS1(Plug Type: KH33K4TP-GQ)



Pin No.

Connection Definition





1

DC+Input





2

DC+Input





3

DC-Input





4

DC-Input





Output Electric Connector

XS2(Plug Type: XK24J12G)
